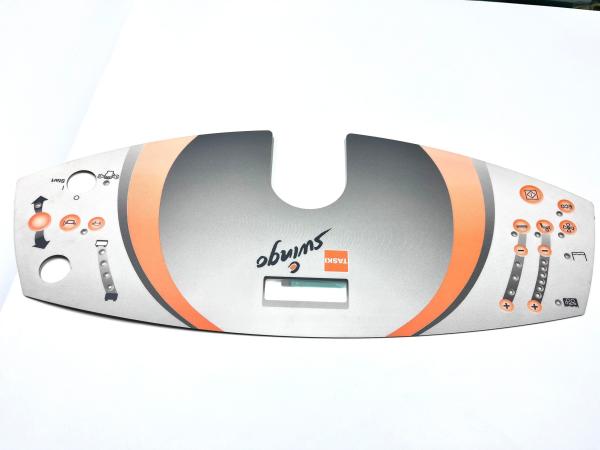

Back Tinted LCD Membran Switch Keypad Switch With Adhesive Layer

Back Tinted LCD Membran Switch Keypad Switch With Adhesive Layer


Polyester dome tactile switches are a type of mechanical switch commonly used in keyboards, keypads, and other input devices. The key features of polyester dome tactile switches include:

Features

1. Durability:

   • Resistant to dust, moisture, and physical wear, making them suitable for various environments.

2. Low Profile:

   • The design is slim and can fit into compact spaces, maintaining a sleek appearance.

3. Membrane Switch:

   • Made of flexible layers, typically including a graphic overlay, spacer layer, and a conductive layer.
   • Provides tactile feedback when pressed, improving user interaction.

4. LCD Display:

   • Displays information, status, and feedback to the user.
   • Can show dynamic content, such as changing messages, icons, or graphics.

5. Customization:

   • Keypad layouts and LCD graphics can be tailored to specific applications, allowing for branding and usability enhancements.

Product Descriptions :

Common membrane keypad structure choose :







Other photo show :





Product Index:

Operating voltage: 35V DC

Operating current: 100mA 1W

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V

Operating temperature: Flat/Metal dome:-20°c to +80°c

Storage temperature: Flat/Metal dome:-40°cto +80°c

Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

Switch stroke: 0.1 to 0.6mm

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Tactile ratio: FC > 40%

Operating humidity: up to 95% RH



How to order

• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote
• Confirm order details and approved our artwork before sample ,confirm our sample before mass goods and Order PI will be sent
• we will send our artwork for your confirm within 3 days before sample making ,and sample lead time is 4-5 business days As usual .
mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity



Our Services :
1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

5 Good service ,High quality ,test all goods and short lead time supply

6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request

7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
