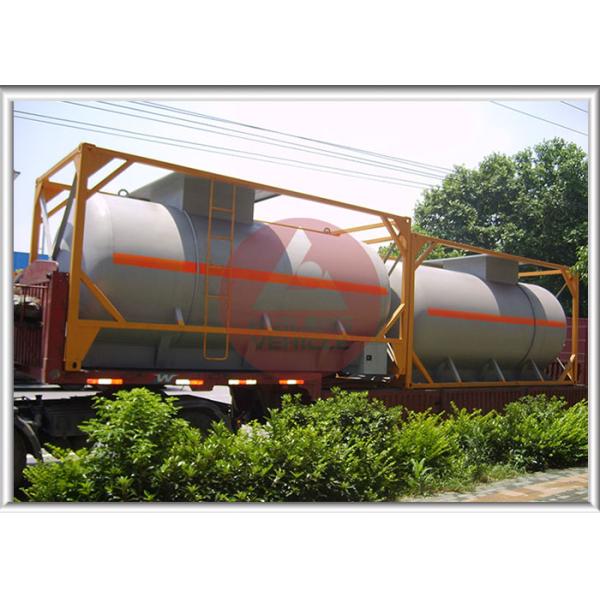

20FT Chemical Tank Trailer , Pneumatic Valve Chemical Transport Tanks Plastic Coating

20FT Chemical Tank Trailer , Pneumatic Valve Chemical Transport Tanks Plastic Coating

Description:

Our company produces different types of tank containers which comply with our national standard of Mobile Pressure Vessel and Tank Container. The tank container is suitable for loading different media, like liquid chlorine, liquid ammonia, anhydrous hydrogen fluoride, chloromethane, trichlorosilane, silicochloroform etc.

Except the loading of liquid chemicals, the tank container should be qualified for sea transportation.

ISO tank is developed to achieve the container freight transport of liquid, powder materials and granular materials. Thus, it inherits all advantages of container transport and is the ideal device for transporting petrochemicals.

Advantages:

1. High efficiency and mobility, suitable for both land and sea transportation;
2. High safety standard for dangerous chemical loading and transportation;
3. Make the transportation more safe and reliable;
4. Reduce the time invested on cargo handling;
5. The container can be stacked in 6-9 layers and the floor area is small;
6. Work as both the conveyance and provisional container;
7. Easy separation of ISO tank and vehicle;
8. Save packing cost;
9. Linear low density polyethylene (LLDPE) can be added in the lining. Alternatively, the steam heater and insulation materials can be equipped.

Specifications:

Dimension
Container Size	20ft
Tare Weight	4800kg
Tank
Total Volume(m3)	25CBM
Tanker Body Material	Q235A/5mm
End Plate	Q235A/6mm, by punching
Parts for Tank
Tanker Shape	Round section tanker body. All tankers are designed to suit sea transportation requirement.
Inside Painting	Anticorrosive plastic coating thickness 16mm
Manhole Cover	Aluminum alloy API manhole cover, ∮500mm , 2 sets with 2 breather valves
Bottom Valve	1-2 sets of Aluminum API Pneumatic Bottom Valve
Discharging Valve	2-4 set ∮100mm discharging valves
Discharging Pipe	4” rubber hose, 2 pcs, 6m long
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
