IEC 60320 1 Test Gauges For Verifying Coupler Sizes Interchangeability

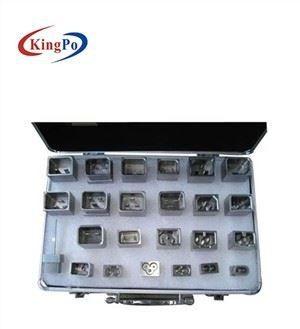

IEC 60320-1 Coupler Connector Gauge for verifying coupler sizes and interchangeability of household appliances
Product Information:
This coupler gauge confirms to the IEC60320.1 standard, it is used for the purpose of verifying coupler sizes and interchangeability measurement of the household and similar appliances, it is a necessary testing equipment for laboratory and measurement testing departments.
Technical Parameters:
No. | Item | Figure No. | QTY. | Remark |
1 | C1 GO gauge | Figure 2 | 1 | Check the connector |
2 | C5 GO gauge | Figure 4 | 1 | Check the connector |
3 | C7 GO gauge | Figure 5 | 1 | Check the connector |
4 | C7 GO gauge A | Figure 5A | 1 | Check the side of the connector into the line |
5 | C1 NOT-GO gauge | Figure 6 | 1 | Check the connector |
6 | C1,C5,C7 NOT-GO gauge | Figure 7 | 1 | Check 2 plugs connector |
7 | C1,C7 NOT-GO gauge | Figure 8 | 1 | Check 3 plugs connector |
8 | C8,C8A,C8B GO gauge | Figure 9 | 1 | Check the appliance inlet |
9 | C9 GO gauge | Figure 9A | 1 | Check the connector |
10 | C9 NOT-GO gauge | Figure 9B | 1 | Check the connector |
11 | C10 GO gauge | Figure 9C | 1 | Check the appliance inlet |
12 | C13 GO gauge | Figure 9F | 1 | Check the connector |
13 | C13,C17 NOT-GO gauge | Figure 9G | 1 | Check the connector |
14 | C14,C16A,C18 GO gauge | Figure 9H | 1 | Check the appliance inlet |
15 | C15 GO gauge | Figure 9J | 1 | Check the connector |
16 | C17 GO gauge | Figure 9K | 1 | Check the connector |
17 | C19 GO gauge | Figure 9L | 1 | Check the connector |
18 | C20,C24 GO gauge | Figure 9M | 1 | Check the appliance inlet |
19 | C21 GO gauge | Figure 9N | 1 | Check the connector |
20 | C22 GO gauge | Figure 9P | 19 | Check the appliance inlet |
21 | C23 GO gauge | Figure 9Q | Check the connector | |
22 | C13,C15,C17 NOT-GO gauge | Figure 9R | 1 | Check the connector |
23 | C15A GO gauge | Figure 9S | 1 | Check the connector |
24 | C16A GO gauge | Figure 9T | 1 | Check the appliance inlet |
![]() |
