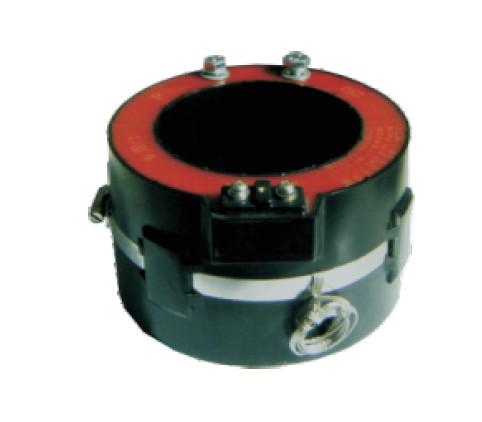

Ring Type Zero Sequence Current Transformer For GIS , Cast Resin Insulated

Ring Type Zero-Sequence LV Current Transformer for GIS

1. Product Introduction:

Match with signal equipment and protective relaying equipment when power system produce zero sequence earthing current, act the equipment components to realize protective or monitoring function

It adopts stainless steel metal shell and casts with full-closed epoxy resin, beautiful appearance and easy installation save much room, many specs’ high accuracy zero sequence CT are suitable for matching with various protection equipment and power system( such as neutral earthing, non-neutral earthing , big current earthing, small current earthing or arc suppression coil earthing )etc.

2. Technical Data:

1. Rated secondary current: 5A,1A

2. Power frequency withstand voltage: 3kV.

3. Rated frequency: 50/60Hz

4. Installation site: indoor

5. Technical Standards: IEC60044-1.2003

3. Specification

4.Outline Drawing:

5.photos

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
