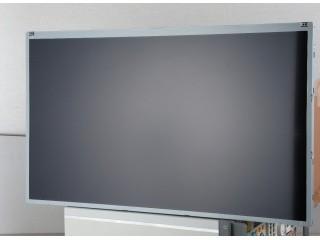

LG Low Power LCD Display LD320DUE FHB1 400 Cd/M² Lightweight 31.5 Inch 60Hz

LG Low Power LCD Display LD320DUE FHB1 400 Cd/M² Lightweight 31.5 Inch 60Hz

Operating Precautions

1) Since front polarizer is easily damaged, please be cautious not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.

5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on hard surface.

6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handling TFT-LCD Module.

7) Do not open nor modify the module assembly.

8) Do not press the reflector sheet at the back of the module to any direction.

9) In case if a module has to be put back into the packing container slot after it was taken out from the container, do not press the center of the LED Reflector edge. Instead, press at the far ends of the LED Reflector edge softly. Otherwise the TFT Module may be damaged.

10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module. 11)After installation of the TFT Module into an enclosure (Notebook PC Bezel, for example), do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.

13) Severe temperature condition may result in different luminance, response time.

14) Continuous operating TFT-LCD Module under high temperature environment may accelerate LED light bar exhaustion and reduce luminance dramatically.

15) The data on this specification sheet is applicable when LCD module is placed in landscape position.

16) Continuous displaying fixed pattern may induce image sticking. It is recommended to use screen saver or shuffle content periodically if fixed pattern is displayed on the screen.
