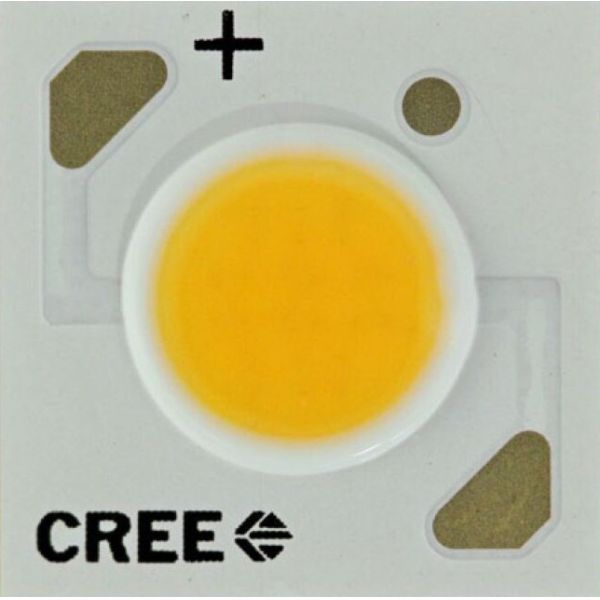

CREE Xlamp 4W COB CXA1304 Application for MR16 and spot light with 2700K 3000K 3500K 4000K 5000K 6500K

Name: CREE Xlamp 4W COB CXA1304 Application for MR16 and spot light with 2700K 3000K 3500K 4000K 5000K 6500K
Brand: CREE
Price: 1 USD

CREE Xlamp 4W COB CXA1304 Application for MR16 and spot light with 2700K 3000K 3500K 4000K 5000K 6500K

Categories	COB LED Chip
Brand Name:	CREE
Model Number:	CXA1304-0000-000C00B430G/CXA1304-0000-00C0HC240G/CXA1304-0000-00C0HC450G/CXA1304-0000-C0HC265F
Place of Origin:	China
Supply Ability:	50000PCS/Week
Delivery Time:	within 3 days
Size:	13.35 x 13.35 mm
Maximum Drive Current:	1.0 A (9 V) 0.5 A (18 V) 0.25 A (36 V
Max Power (Maximum Efficacy (lm/W):	142 lm/W
viewing angel:	115°
CRI:	80 ，90
CCT:	2700K, 3000K,3500K,4000K,5000K,6500K
MOQ:	Negotiation
Price:	Negotiation

Contact Now

Add to Cart

Company Info.

One Plus Lighting Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

CREE Xlamp 4W COB CXA1304 Application for MR16 and spot light with 2700K 3000K 3500K 4000K 5000K 6500K

Product description

Size	13.35 x 13.35 mm
Product Options	9 V 18 V 36 V High-CRI
Maximum Drive Current	1.0 A (9 V) 0.5 A (18 V) 0.25 A (36 V)
Max Power (W)	10.9 W
Light Output	300 - 1000 lm
Maximum Efficacy at Binning Conditions (lm/W)	142 lm/W
Light Emitting Surface (LES)	6 mm
Typical Forward Voltage	9 V @ 400 mA 18 V @ 200 mA 36 V @ 100 mA
Maximum Reverse Current	0.1 mA
Viewing Angle	115 °
Binning	85°C ANSI (White) 2- and 4-Step EasyWhite^®
Maximum ESD Withstand Voltage	8000 V (HBM per Mil-Std-883D)
RoHS-Compliant	Yes
REACh-Compliant	Yes
UL-Recognized	Yes - Level 4 Enclosure Consideration
